The Spectral Beacon: Unmasking the Invisible Battlefields of Modern Electronic Warfare

SARRadarJamming
Written By Adam Simmons

The era of the "invisible war" is rapidly drawing to a close, replaced by a level of spectral transparency that few military planners anticipated a decade ago. In the high-stakes corridors of modern conflict—from the storm-lashed waters of the Baltic to the strategic chokepoints of the Middle East—the electromagnetic spectrum has long been a sanctuary for those who wish to hide. Commanders have traditionally viewed electronic warfare (EW) as a cloak, a means to blind an adversary’s eyes and deafen their ears. Yet, in a profound irony of the digital age, the very act of electronic concealment has become a radiant beacon. Through the lens of Synthetic Aperture Radar (SAR) satellite sensors, the once-hidden footprints of high-power jammers are now surfacing as distinct, unmistakable signatures, revealing the locations of the world’s most sensitive high-valued areas of interest (HVAI).

For the geospatial community, this represents more than a technical milestone; it is a paradigm shift in how we interpret "truth" on the ground. As an industry journalist for Project Geospatial, the task is to peel back the layers of this silent struggle, documenting the convergence of orbital physics, deep learning, and the raw human experience of those caught in the "mush" of a jammed environment. The story of SAR-based jamming detection is one of a technological double-edged sword: the more aggressively a state actor attempts to deny information to their enemy, the more clearly they define the boundaries of their own most critical operations.

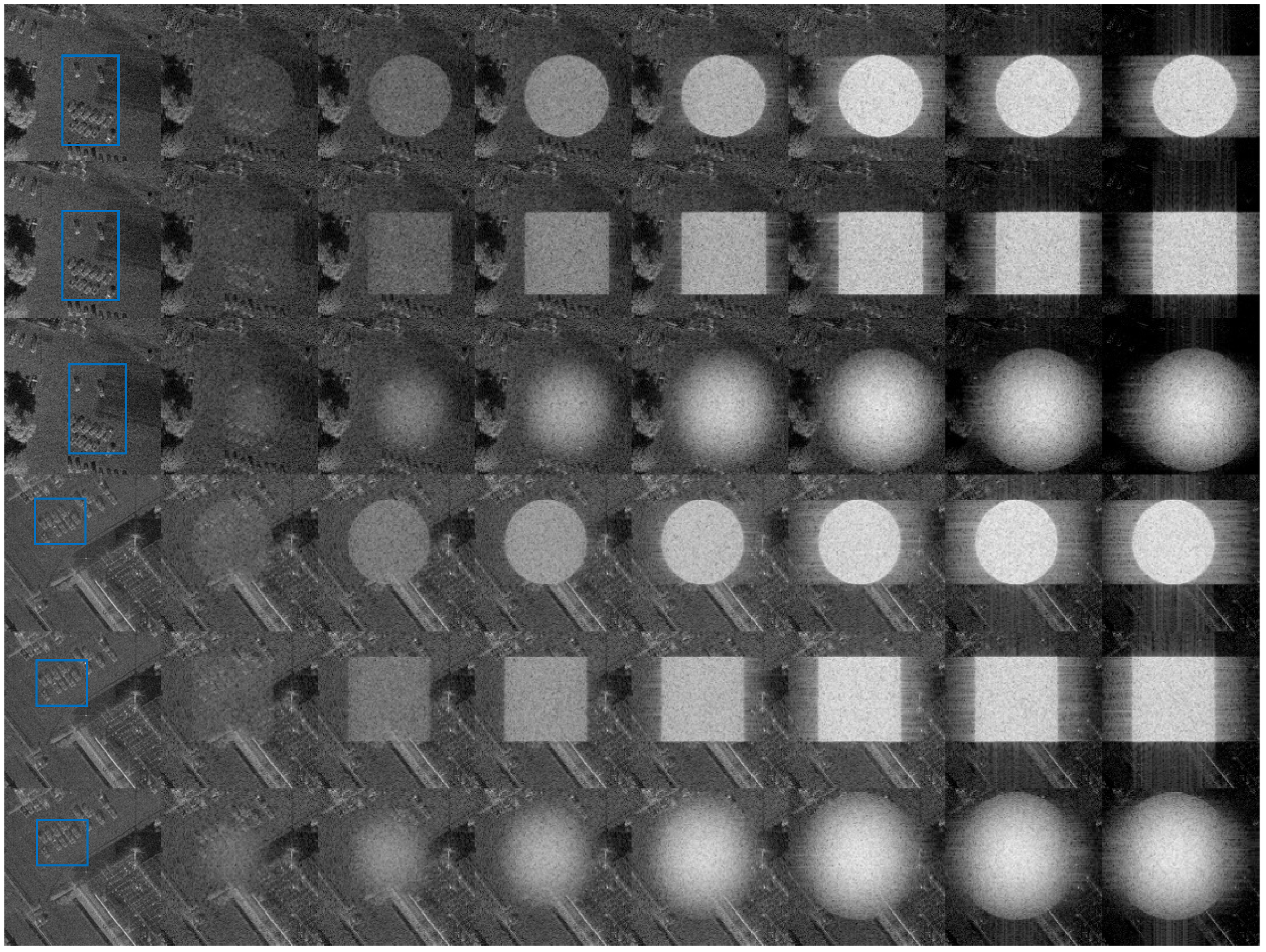

Fig. 1. Simulated SAR barrage jamming flares across forest and city backgrounds with increasing Jamming-to-Signal Ratios (JSR). Source: Li et al. (2025) / MDPI. Licensed under CC BY 4.0.

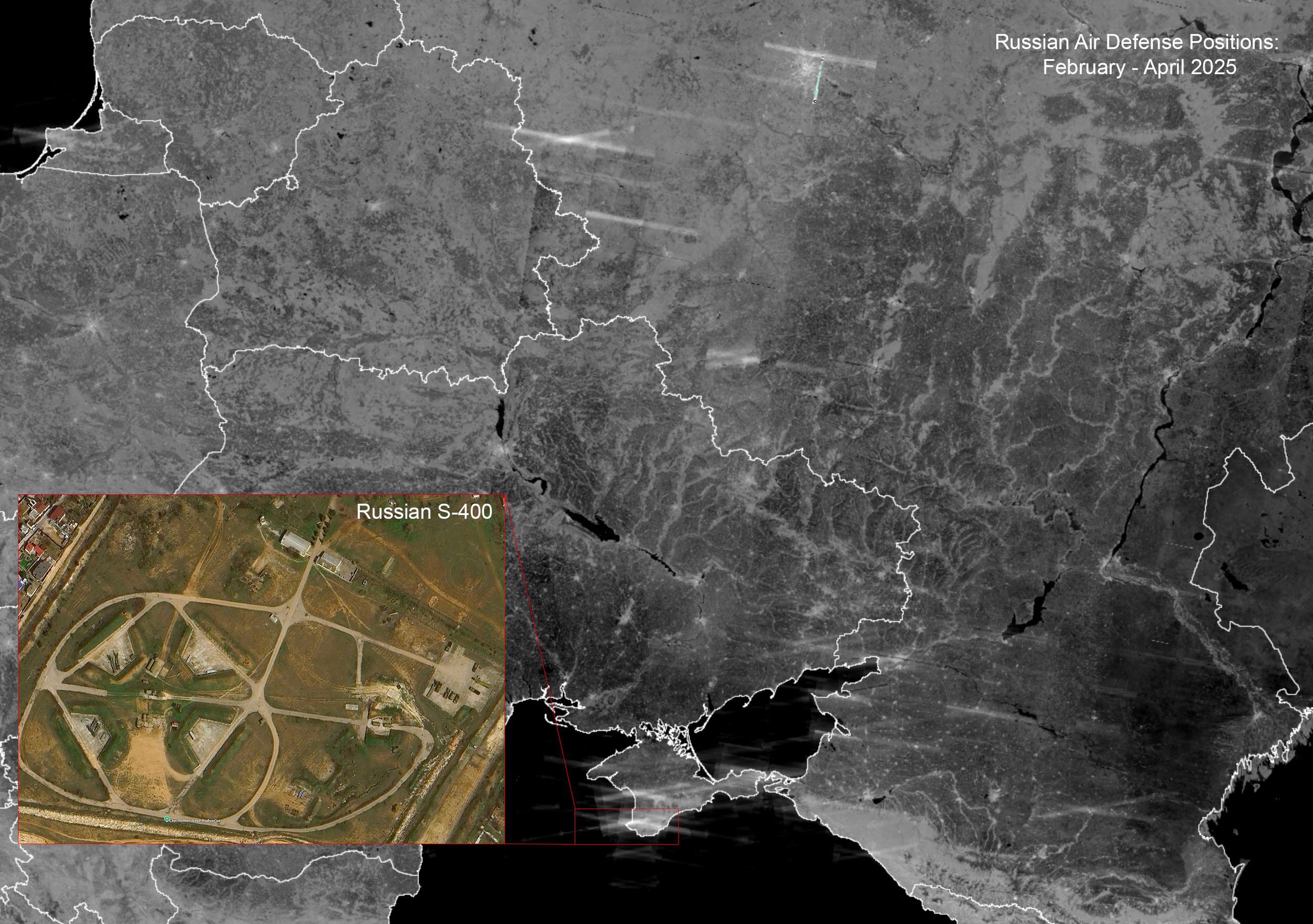

Fig. 2. OSINT analysis of Sentinel-1 SAR data showing interference patterns (white streaks) caused by S-400 "Cheese Board" radar emissions. Source: u/Frank_The_Dog via r/MapPorn. Data provided by European Space Agency (ESA) Sentinel-1.

Fig. 3. Sentinel-1 SAR SLC images showing signal suppression caused by active ground-based jamming. Image courtesy of Huang et al. (2025) / IEEE. © 2025 IEEE.

The Synthetic Eye: Mastering the Physics of Persistence

To understand how SAR unmasks the jammer, one must first confront the fundamental limitations of the human eye and traditional optical sensors. Optical imagery, while intuitive, is a prisoner of the environment. It requires sunlight; it is defeated by clouds, smoke, and the heavy fog of coastal battlefields. In contrast, Synthetic Aperture Radar is an active sensing technology that brings its own illumination to the party. By transmitting microwave pulses and recording the precision of their return, SAR penetrates the atmospheric veils that hide kinetic movements.

The "Synthetic" in SAR refers to the elegant mathematical workaround for a physical impossibility. To achieve the high resolution required to identify a mobile missile launcher or a specific naval vessel, a satellite would theoretically need an antenna kilometers long. SAR overcomes this by using the satellite’s orbital motion to simulate that massive aperture, combining thousands of radar returns into a single, high-fidelity image. This process provides a 24/7, all-weather monitoring capability that is now the backbone of persistent surveillance.

Frequency Band Wavelength Primary Characteristics Strategic Application
X-Band 2.4 to 3.75 cm High resolution, sensitive to small targets. High-detail reconnaissance, jammer detection.
C-Band 3.75 to 7.5 cm Balance between resolution and penetration. Maritime monitoring, Sentinel-1 open-source data.
L-Band 15 to 30 cm High penetration through foliage and soil. Detecting hidden structures, uncovering jungle trails.
P-Band 30 to 100 cm Deepest penetration; sensitive to biomass. Archaeological surveys, deep-cover intelligence.

When a ground-based jammer—such as the Russian Murmansk-BN or the Iranian-produced GNSS tools—emits a high-power signal on the same frequency as the satellite's radar, it does not merely "block" the view in the traditional sense. Instead, it overwhelms the satellite's receiver. In the final reconstructed image, this interference manifests as a "flare" or a brilliant streak of noise that originates from the jammer's precise coordinates. For an analyst, this flare is a neon sign pointing to an asset that someone, somewhere, is desperate to protect.

The Sevastopol Siege: A Case Study in Spectral Transparency

The besieged port of Sevastopol has become perhaps the most scrutinized square mile of electromagnetic real estate on Earth. Since late 2023, the Russian Navy has attempted to shroud its Black Sea Fleet in a multi-layered electronic defense aimed at neutralizing Ukrainian maritime drones and cruise missiles. The strategy leverages "block jamming," a technique where transmitters saturate the C-band and X-band frequencies to "blind" the guidance sensors of incoming threats.

However, the analysis of European Space Agency (ESA) Sentinel-1 imagery has turned this defensive wall into a liability. OSINT analysts, including the diligent Damien Symon, have documented massive flares over the harbor that are so intense they effectively "white out" the entire city. These are not accidental glitches. They are the visible evidence of the Russian Federation's most powerful electronic warfare equipment operating at peak capacity.

The human element of this technological siege is palpable. Residents of Sevastopol have documented S-400 missile launches over the coast, their trails visible against the Crimean sky, while simultaneously, the city's digital reality was being warped. Ships physically moored at the submarine piers in Pivdenna Bay began reporting their locations via AIS as being at the Sevastopol International Airport, eight kilometers to the north. This systematic "teleportation" is a side effect of GPS spoofing, a more advanced form of interference that tricks a receiver into calculating a false position.

For the navigator on a commercial merchant vessel, this is more than a curiosity; it is a profound safety risk. The "teleportation" of vessels can lead to catastrophic collisions or groundings as automated navigation systems react to fake data. The maritime community is now forced to operate in a "dual reality," where their eyes see the harbor but their instruments see an airport runway.

The Baltic "Mush": Hybrid Warfare and the Civilian Toll

While the Black Sea remains a kinetic theater, the Baltic region has become the epicenter of a "hybrid" electronic campaign that blurs the line between peace and war. Since February 2022, electronic interference has become a "fact of life" for pilots and mariners from the Gulf of Gdansk to the high-latitude airports of Finland and Norway.

The sources of this interference have been triangulated to specific hotspots: the Russian exclave of Kaliningrad and the military districts surrounding St. Petersburg. Specifically, the antenna facility at Okunevo has been identified through aircraft telemetry analysis as a recurring origin point for signals that "bamboozle" the navigation of thousands of civilian flights.

Region/Incident Date/Period Impacted Entities Key Signature
Kaliningrad/Baltic Oct 2024 300+ Aircraft; 5% total GNSS collapse. Mobile maritime jammers; Tobol system.
Finnmark, Norway Jan-Feb 2024 44 days of daily interference. Kola Peninsula EW units.
Tartu, Estonia Apr-May 2024 Finnair flight suspensions. Airport closure due to GPS denial.
Sweden/Poland Christmas 2023 Holiday travel disruption. Massive regional EW "surge."

The human narratives emerging from the Baltic are harrowing. Pilots report their GPS quality suddenly dropping to zero as they cross the jammer’s "horizon". In some instances, aircraft have been forced to "swerve and dive" to avoid non-existent obstacles generated by spoofed sensor readings. For first responders in northern Norway, the situation is even more dire. The Deputy Chief of Police in Finnmark, Trond Eirik Nilsen, has noted that rescue teams "depend on good GPS signals to quickly locate areas with people missing in extreme weather". When the jamming starts, the margin for error in life-saving operations vanishes.

Finnair's decision to suspend flights to Tartu, Estonia, for a month in 2024 was a watershed moment. It proved that electronic warfare could effectively shut down civilian infrastructure without a single shot being fired. The "mush" of the jammer had created an invisible blockade, proving that in the modern world, the denial of data is as powerful as the denial of the sea.

The Middle East Surge: Navigating the Strait of Uncertainty

As the "Iran War" intensified in early 2026, the Gulf of Oman and the Strait of Hormuz saw an unprecedented escalation in GNSS interference. Data from the Windward Maritime AI platform recorded more than 1,650 vessels experiencing GPS and AIS interference in a single week—a 55% increase over previous levels.

The patterns observed here are distinct from the stationary flares of Sevastopol. Analysts have identified "zig-zag" signal distortions, where a vessel's reported position is thrown across multiple locations within a 24-hour period. These are the digital fingerprints of mobile, ship-based jammers and sophisticated spoofing units. Ships are no longer just being blinded; they are being manipulated.

The motive in this region is often tactical protection. Gulf states, including the UAE and Oman, are believed to be deploying defensive "force fields" to ward off satellite-guided Shahed drones. As Thomas Withington, an associate fellow at RUSI, points out, these states are willing to accept the disruption of "their own air traffic or maritime traffic... just like Israel did" in 2024 to protect against unmanned threats.

For the crews of the 1,000-plus vessels stuck in the Gulf, the experience is one of grinding frustration. Half of the ships in the area are unable to determine their location with any certainty. Dimitris Ampatzidis of Kpler notes that many of these cargo ships and oil tankers have GPS capabilities that are "likely worse than those in your cell phone," making them particularly vulnerable to the "wall of mush" created by high-power transmitters. In the narrow, crowded lanes of the Gulf, where a chemical tanker or a crude carrier can be 300 meters long, navigating by "feeling" is not an option; it is a recipe for an environmental disaster.

The NewSpace Vanguard: Democratizing the Orbital Watch

The rise of SAR as a counter-EW tool is inseparable from the "NewSpace" revolution. For decades, SAR was the exclusive domain of national intelligence agencies, utilizing satellites that weighed as much as a school bus and cost billions. Today, the vanguard is led by companies like ICEYE, Umbra Space, and Capella Space, who have shrunk the technology into microsatellites weighing less than 100 kg.

Rafal Modrzewski and Pekka Laurila, the co-founders of ICEYE, started their journey in a university lab at Aalto University in Finland with a goal to "make geospatial awareness operate on human timescales". Their constellation is now the world's largest SAR fleet, capable of "millimeter-level change detection" that can see things from space "you can't even see standing on the ground".

Company Satellite Weight Best Resolution Key Innovation
RADARSAT-2 2,200 kg ~1 meter Traditional, high-power legacy system.
ICEYE < 100 kg 25 cm Mass-produced constellation for persistence.
Umbra Space 65 kg 16 cm Highest resolution commercial SAR imagery.
Capella Space ~100 kg 50 cm First commercial SAR with optical inter-satellite links.

This democratization of data has empowered the OSINT community. No longer do we have to wait for a declassified briefing from a government agency to know where a jammer is located. The National Reconnaissance Office (NRO) itself has recognized this shift, awarding Stage III contracts to Capella, ICEYE, and Umbra to integrate their "commercial radar capabilities" into national security missions.

One of the most revolutionary developments in this sector is the ICEYE "ISR Cell"—a containerized, end-to-end unit that gives field commanders direct access to satellite tasking and downlink in "near-real-time". In a conflict zone, where traditional communication lines may be jammed, the ISR Cell provides a resilient, independent loop. It puts strategic-grade intelligence into the hands of the tactical edge in minutes, not hours. This is the ultimate counter-countermeasure: a system that bypasses the jammer's local effects by reaching directly to orbit.

Algorithms of Truth: The Deep Learning Battle for the Spectrum

As the volume of SAR data explodes, the challenge has shifted from finding the jammer to processing the noise. Radio frequency interference (RFI) is not just a nuisance for analysts; it is a contaminant that can render an entire dataset useless for change detection or topography mapping.

Engineers are fighting back with Artificial Intelligence. The "FuSINet" (Fusion of Segmentation and Inpainting Networks) is a prime example of this algorithmic arsenal. It uses a "U-former" network with global information capture to learn the content covered by the interference and then "fills in the blanks," restoring the original scene while filtering out the jammer's flare.

Another approach involves the use of Convolutional Autoencoders (CAE). These unsupervised models are trained to reconstruct "clean" SAR images. When the model encounters an image with RFI artifacts, it treats the interference as an anomaly. By comparing the original jammed image with the model's "ideal" reconstruction, analysts can generate a high-precision heat-map of the interference. This method has been used to detect ship-borne air-surveillance radars in the middle of the ocean, identifying "dark" naval vessels that have turned off their transponders but are still emitting powerful radar pulses to search for their own targets.

The mathematics of this struggle are complex, involving STFT (Short-Time Fourier Transform) and ISTFT to convert signals between the time and frequency domains pulse-by-pulse. But the goal is simple: to preserve the "signal of truth" in an increasingly congested and contested electromagnetic environment.

The Lie Detector: InSAR and the Verification of Reality

One of the most insidious threats in modern EW is "deceptive jamming"—the creation of "ghost targets" that mimic real radar echoes. A sophisticated jammer using Frequency Diverse Array (FDA) technology can generate multiple false targets that appear equally spaced along a range direction, confusing the operator and potentially leading to the targeting of empty space.

To counter this, analysts are turning to Interferometric SAR (InSAR). By using two SAR antennas to record the same scene simultaneously (cross-track interferometry), researchers can exploit the phase differences between real targets and false ones. A real object on the ground has a specific interferometric phase based on its physical geometry and distance from the two antennas. A deceptive signal, being a synthetic emission from a point-source jammer, will exhibit a different phase relationship.

This allows for the creation of a "0-1 valued mask matrix" that filters out the mirages, leaving only the real objects. In the high-stakes game of naval combat, where a single missile can cost millions, the ability to distinguish between a Ropucha-class landing ship and a digital ghost is the difference between victory and a catastrophic waste of resources.

High-Valued Areas of Interest: The Irony of the Flare

The emergence of SAR jamming detection has created a new strategic reality: the "High-Valued Area of Interest" (HVAI) is now defined by its invisibility. In the past, reconnaissance was about finding things. Today, it is about finding the things that cannot be seen.

When an analyst sees a massive, persistent flare over a remote Russian training ground or a secluded Iranian facility, they know they have found something important. Jamming is expensive; it requires significant power, specialized personnel, and high-end hardware like the Borisoglebsk-2 or the Krasukha-4. A military does not deploy these assets to protect a dummy target or an empty field. The presence of the flare is a confession of value.

This has led to a "cross-cueing" workflow. Once a SAR sensor identifies a jamming hotspot, other sensors are brought to bear. Optical satellites wait for a break in the clouds; signals intelligence (SIGINT) satellites listen for the specific frequencies being used; and OSINT analysts scour social media for "footprints" like photos of mobile antennas or reports of local GPS outages.

The result is a holistic view of the adversary's posture. In Ukraine, this fusion of commercial SAR imagery, drone data, and open-source chatter has allowed for the "near real-time tracking of the conflict". It has stripped the Russian military of its traditional reliance on "Maskirovka" (deception and concealment), as the persistent gaze of orbital radar makes it impossible to hide large-scale troop movements or the deployment of high-value EW assets.

The Human Voice: Living in the Spectrum's Shadow

As an industry journalist, one cannot ignore the emotional weight that this technology carries for those who live in its shadow. For the pilots of Widerøe or SAS flying into the Arctic coast of Norway, the daily GPS jamming is more than a technical challenge; it is a "mysterious nuisance" that compromises the safety of every passenger on board.

The Deputy Chief of Police in Finnmark, Trond Eirik Nilsen, speaks of the stress of trying to find missing people in blizzards while the instruments they rely on are being deliberately bamboozled by a neighboring power. There is a sense of violation—a feeling that the very air they breathe has been turned into a weapon of confusion.

In the Baltic, pilots have had to "swerve and dive" to avoid ghost obstacles, an experience that triggers a visceral, primal fear. The cockpit, once a place of orderly data and controlled flight, becomes a theater of the surreal. The "ever-present potential for human error" looms large, as pilots must decide in a split second whether to trust their training or their instruments.

Even for the "dark activities" vessels in the Gulf, the human cost is real. Mariners are caught in the crossfire of a digital war they did not choose, forced to loiter in dangerous waters while they wait for "safer operating conditions" that may never come as long as the jamming persists. The "silent unseen hand" of electronic warfare is no longer silent to them; it is a screaming wall of mush that dictates their every move.

Strategic Outlook: The Future of the Radiant Battlefield

The future of SAR jamming detection is one of increased resolution, tighter integration, and inescapable transparency. The National Reconnaissance Office’s push to transition study contracts into a "program of record" by 2026 signals that the U.S. government views commercial SAR as a permanent pillar of national security.

We are moving toward a world of "millimeter-level change detection," where the movement of a single truck or the opening of a specific bunker hatch can be detected through the densest cloud cover or the most aggressive jamming. The ISR Cell concept will likely expand, allowing every allied nation to own a "sovereign space-based ISR system" that can be deployed to the tactical edge in minutes.

However, the "cat and mouse" game will continue. Adversaries will develop more sophisticated deceptive techniques, perhaps using metasurfaces that can "adeptly modulate incident EM waves" to distort the apparent shape or position of a target. The battle will shift deeper into the algorithms, as AI-enabled processors on board the satellites attempt to "null steer" and "frequency hop" faster than the jammers on the ground.

For the geospatial community, the focus is shifting from simple detection to advanced interpretation. The "mush" of electronic interference is no longer just a signal contaminant, but a vital intelligence layer that verifies truth in contested environments. While adversaries rely on jammers to mask their activity, these emissions effectively serve as a radiant map of their strategic priorities. Our role at Project Geospatial is to continue documenting this evolution in conflict—a shift toward a transparent battlefield where the once-silent footprints of electronic warfare have become the most definitive signatures of strategic intent.


Adam Simmons https://www.projectgeospatial.org
